- Solid blades available in Food-grade UHMW, UHMW with Stainless Steel, or Urethane
- Made from FDA-compliant materials, BISSC Verified, EU 1935/2004 Compliant

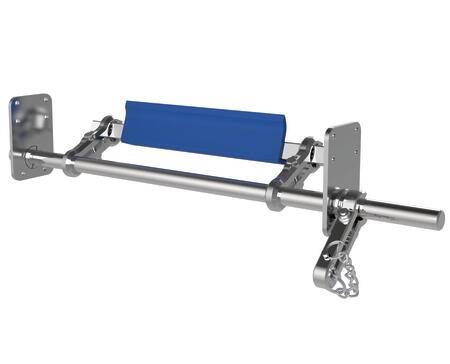

- Simple design with small footprint, featuring solid, stainless steel components
- Comes with complete hardware set, including side plates and standoffs, so installation, tensioning, and service is easy
- A secondary cleaner with built in flexibility to operate with the blade trailing or leading at a variety of blade-to-belt contact angles
- Compatible with endless and mechanical splices
- Easy to operate, adjust, and tension to minimize blade wear, eliminate belt damage, and maximize blade cleaning efficiency
- Available in standard blade widths for belts from 12 to 84" (305 to 2134 mm)
Narrow your cleaner selection options based on your specific needs. Help Me Choose
| Blade Lengths |
Blade
Length |
Support
Bar Length |
Maximum
Conveyor Width |
| in. |
mm |
in. |
mm |
in. |
mm |
| 12 |
305 |
15 |
381 |
20 |
508 |
| 18 |
457 |
21 |
533 |
26 |
660 |
| 24 |
610 |
27 |
686 |
32 |
813 |
| 30 |
762 |
33 |
838 |
38 |
965 |
| 36 |
914 |
39 |
991 |
44 |
1118 |
| 42 |
1067 |
45 |
1143 |
50 |
1270 |
| 48 |
1219 |
51 |
1295 |
56 |
1422 |
| 54 |
1372 |
57 |
1448 |
64 |
1626 |
| 60 |
1524 |
63 |
1600 |
70 |
1778 |
| 66* |
1676 |
69 |
1753 |
76 |
1930 |
| 72* |
1829 |
75 |
1905 |
82 |
2083
|
| 84 |
2134 |
|
|
94 |
2388 |
*Requires FLEXCO application support and coordination. Please contact Flexco Customer Service or your local Territory Manager. Applications over 54” require dual tensioners and additional blade support.
Shaft must be 12” (300 mm) longer than the outside width of converyor structure.
- Can be mounted 1 - 4" (25 - 100 mm) from the transition point where the belt leaves the head pulley or any location down the beltline
