Flex-Lag® Rubber Lagging

  • Plain Rubber Lagging
  • Diamon Pattern Rubber Lagging
  • Light Duty Lagging

Flex-Lag® Rubber Lagging has been developed in multiple styles including Light-Duty, Plain-Pattern, and Diamond-Pattern to meet the needs of any application.

Because the lagging comes in rolls, virtually any pulley dimension can utilize Flex-Lag.

Features and Benefits


Light-Duty

  • Specially designed for pulleys with diameters as small as 50 mm.
  • Moisture is channeled between small raised buttons that support and grip the belt and deliver superior traction.
  • Available in SBA
  • Can be made in rolls up to 75m long, dependent on lagging thickness

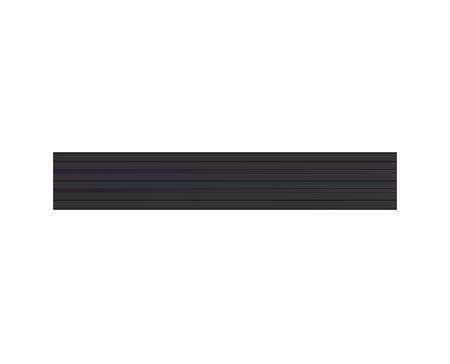

Plain-Pattern

  • Helps prevent belt slippage in dry environments
  • Provides larger surface contact area relative to other patterned lagging
  • Horizontal grooves channel water and debris while providing a better dynamic interaction with the belt compared to sheet lagging

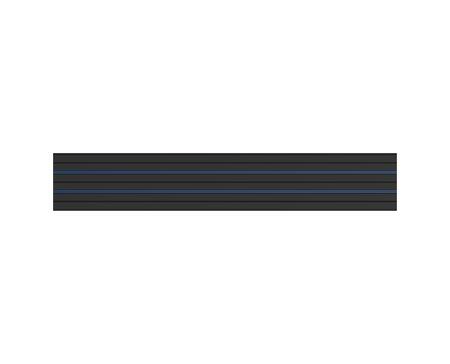

  • Available with FRAS approved rubber, marked in blue for easy identification on site

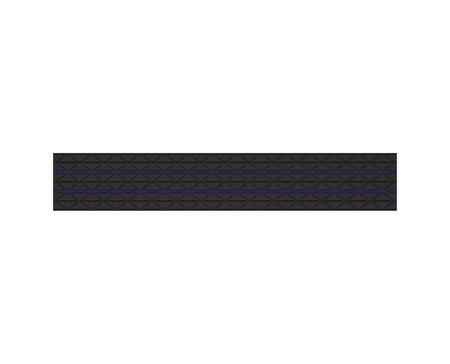

Diamond-Pattern Rubber

  • Diamond pattern features a bidirectional design for superior water-shedding characteristics
  • Horizontal grooves provide a second method to disperse water and debris off the lagging and prevent hydroplaning
  • Performs well in both dry and wet applications

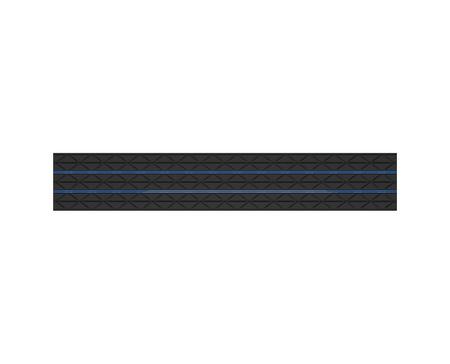

  • Available with FAAS approved rubber, marked in blue for easy identification on site


Specifications

  • Minimum Pulley Diameter:
    • Light Duty: 2" (50 mm)
    • Plain and Diamond-Pattern:12" (300 mm)
  • Thickness:
    • Light Duty: .3" (7.5mm)
    • Plain and Diamond-Pattern: 3/8"–1" (10–25 mm)
  • Temperature Rating: 5° F to 185° F (-15° C to 85° C)
  • Rubber Compound: SBR (Styrene-Butadiene-Rubber)
  • Rubber Hardness: 68 ± 3 Shore A
  • FRAS (Fire Resistant Anti Static) - MHSA Certification # MSHA NO. IC-190
  • Roll Width: 8" (200 mm)
  • Roll Length:
    • Light Duty:  10.8 ft. (3.3 M)
    • Plain and Diamond-Pattern: 21 ft. (6.5 m)

Installation

  • Use the Flexco Lagging calculator to determine the appropriate number of strips/rolls required for your application
  • Flex-Lag does not require removing the pulley from the conveyor system
  • A labor-saving cold vulcanization process with Flex-Lag Adhesive makes on-site installation fast, simple, and efficient
  • Products
  • Specifications
  • Instructions
  • Sales Support
Apply FiltersClose
Refine Results
Please wait while we gather your results.

How to Select the Right Lagging Product

To select the right pulley lagging, be sure to consider the environmental conditions around the pulley:

  • Belt condition, i.e., wet or dry
  • The service required for bonded lagging versus weld-on
  • The expected wear life of the lagging


Flex-Lag® Rubber

Flex-Lag® Ceramic

Flex-Lag® Weld-On™

Criteria

Light Duty

Plain

Diamond

Diamond Pattern

Medium Ceramic

Full Ceramic

Rubber Diamond

Full Ceramic

Thickness Range Available*

7.5 mm

10-25 mm

10-30 mm

12-30 mm

12-30 mm

12-30 mm

15 mm

15 mm

Belt Width*

Any Width

Any Width

Any Width

Any Width

450-3000 mm

450-3200 mm

450-3200 mm

450-3200 mm

Minimum Pulley Diameter

50 mm

300 mm

300 mm

300 mm

300 mm

300 mm

400 mm

400 mm

Dry Friction

Very Good

Excellent

Very Good

Very Good

Excellent

Excellent

Very Good

Excellent

Wet Friction

Average

Average

Good

Very Good

Excellent

Excellent

Good

Excellent

Wet/Muddy Friction

-

Average

Very Good

Very Good

Very Good

Very Good

Very Good

Very Good

Wear Life

Good

Good

Good

Very Good

Excellent

Best

Good

Best

Ease of Installation

Good

Good

Good

Good

Good

Good

Best

Best

Drainage Grooves

No

Yes

FRAS (Fire Resistant Anti-Static)

No

Available

Rubber Compound

SBR

Hardness (Shore A)

68 +/- 3

Ceramic Compound

-

-

-

Al2O3

Al2O3

Al2O3

-

Al2O3

Ceramic Coverage

-

-

-

13%

39%

80%

-

74%

Can be used in an autoclave (with application of uncured rubber)

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Operating Temperature

-15° -  85° C



COF Values

Ask Your Local Sales Representative

*Additional thicknesses and widths available as special orders.
